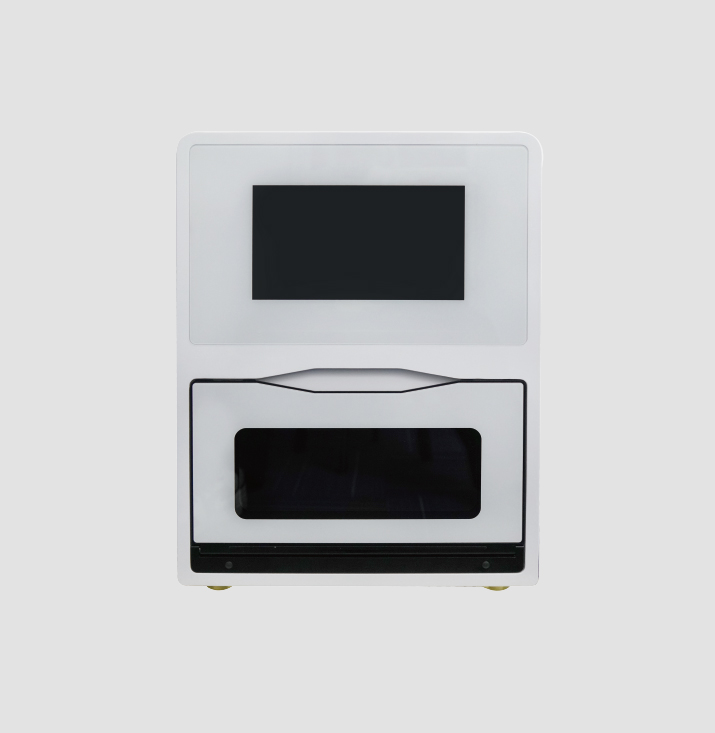

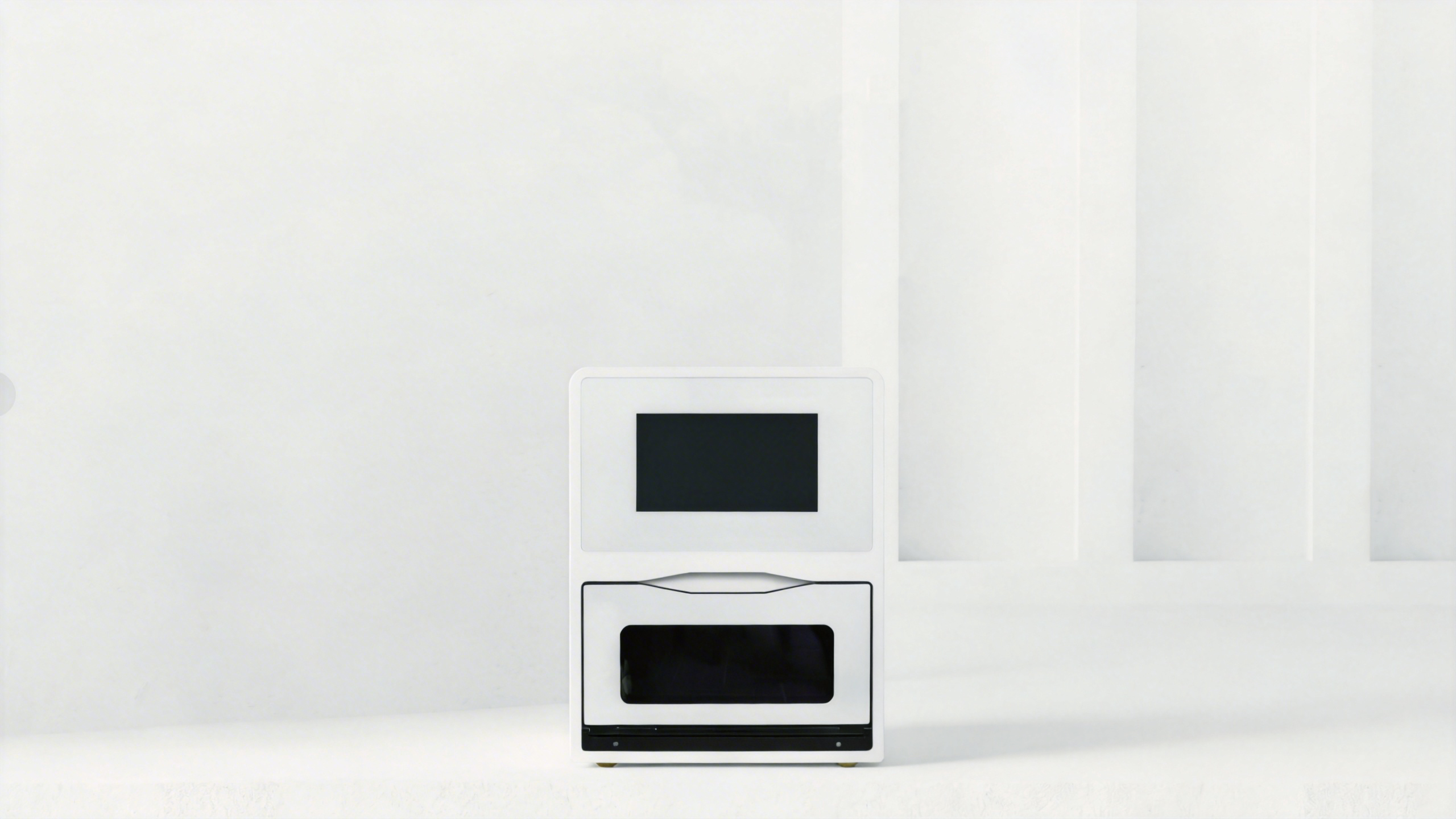

MY5 Dental Wet Milling Machine
¥：120000RMB

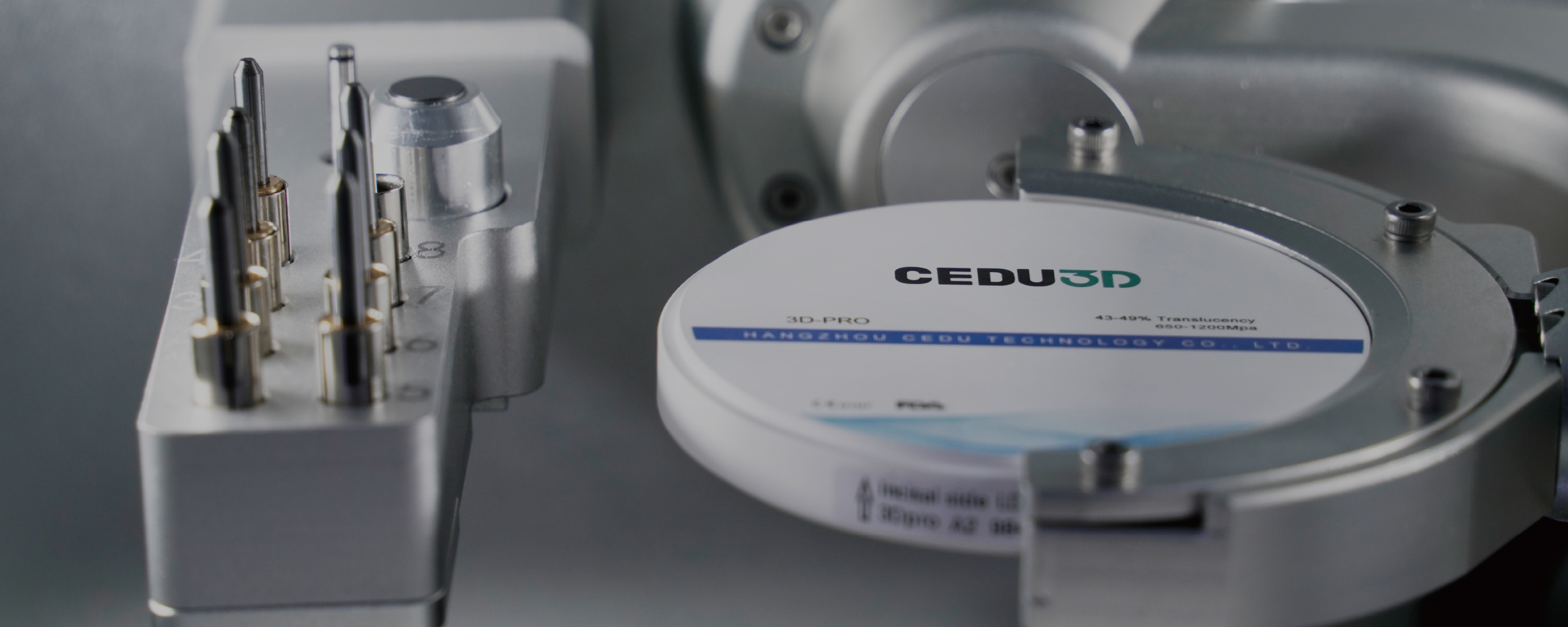

Dry And Wet Integration

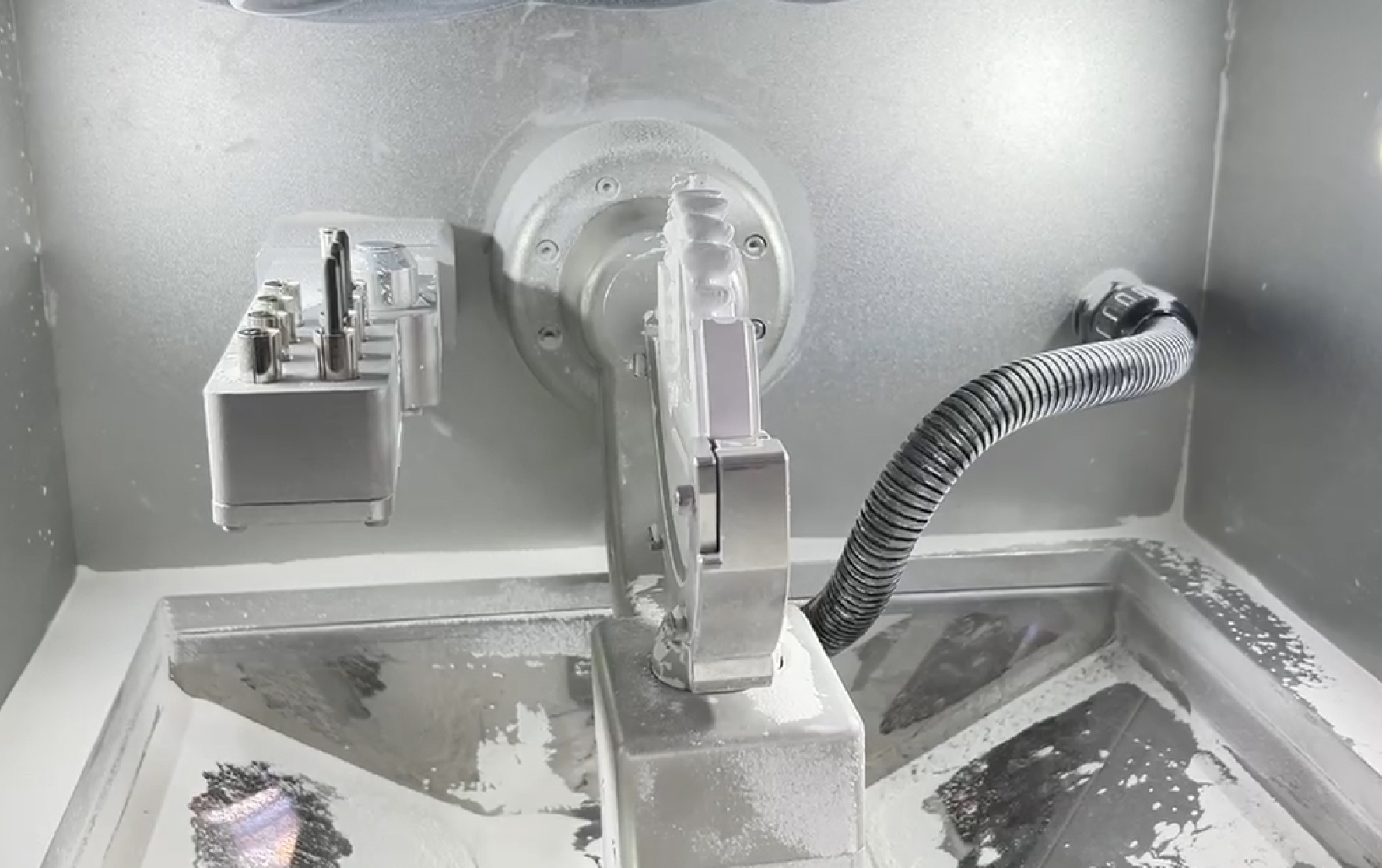

90° Milling Function
Intelligent Auto-Calibration
From aesthetic veneers to full dentures, mill with versatility and confidence.
Parameter
Size：510*660*710MM
Weight：110KG

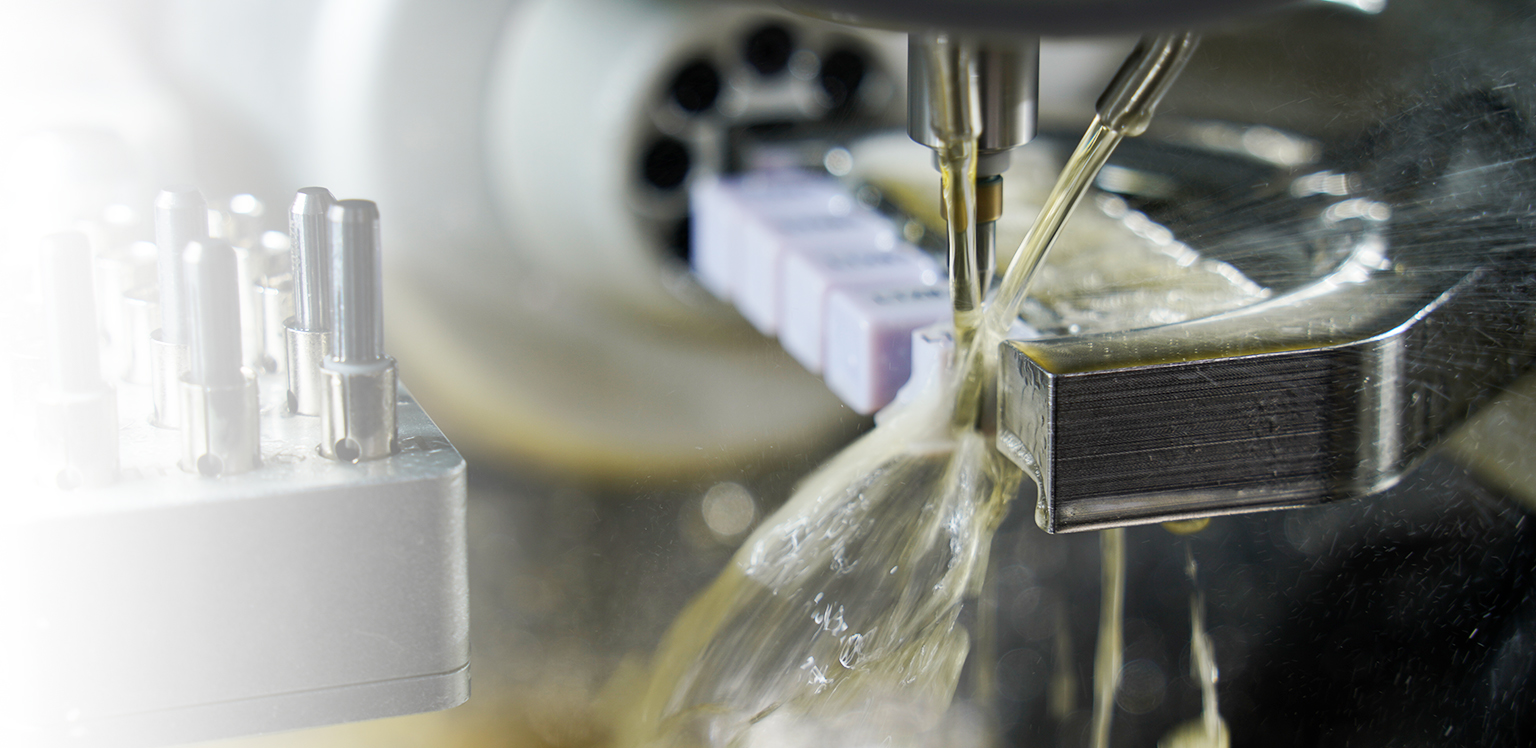

Processing method：Wet&Dry Milling
Number of axes：Five axis linkage
Machining precision：≤5μm
Rated current frequency：50/60HZ
Compressed air：0.6-0.8MPa
Number of cutting tools：8
Electric machinery：Servo motor
Processing angle：A ±360°，B -30° +90°
Data transmission：USB, Ethernet
Spindle：60000RPM，Liquid-cooling，6MM clamp head，1.8KW

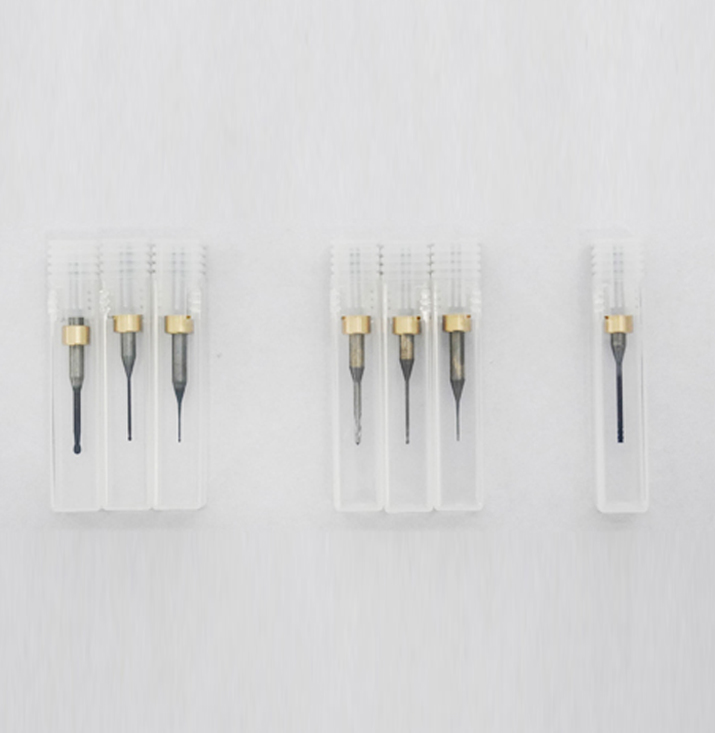

Standard milling cutter set

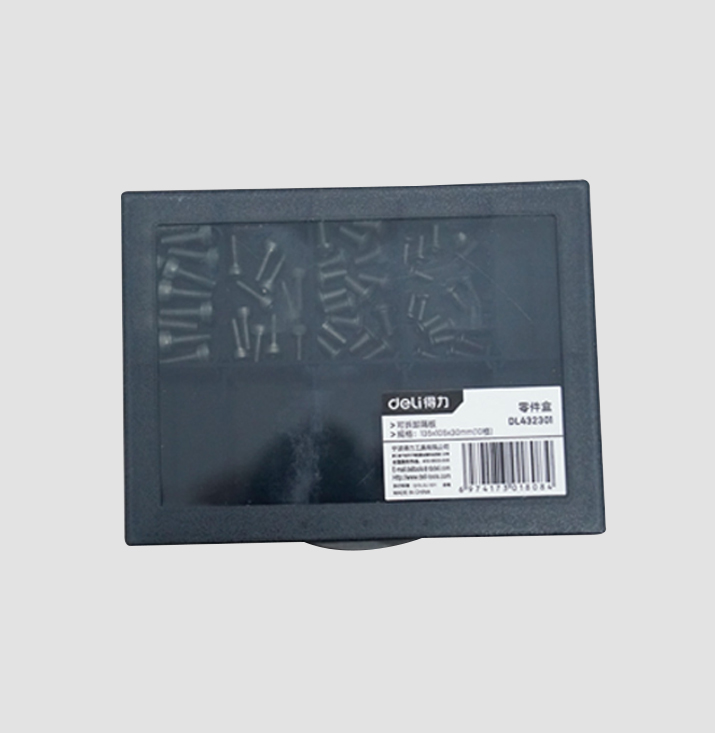

Accessories package

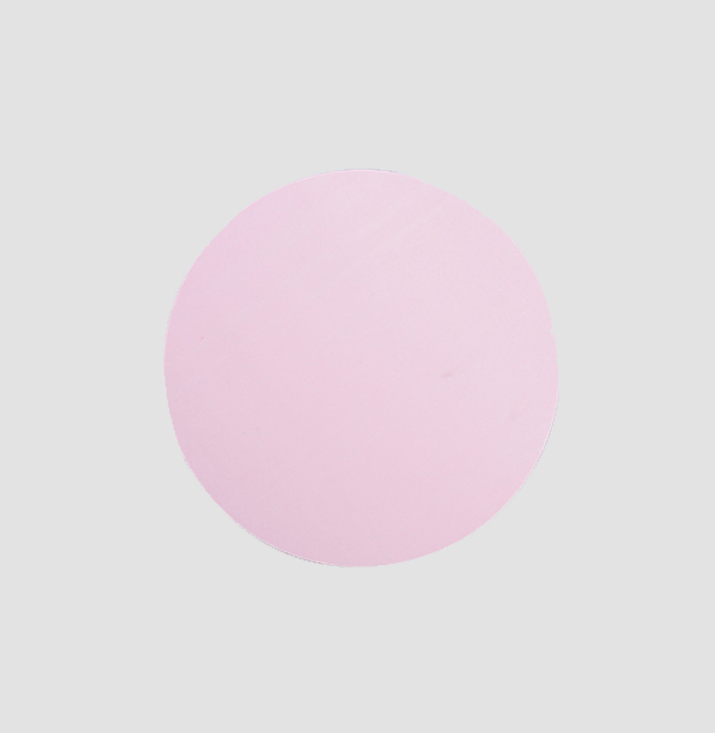

Calibration tool

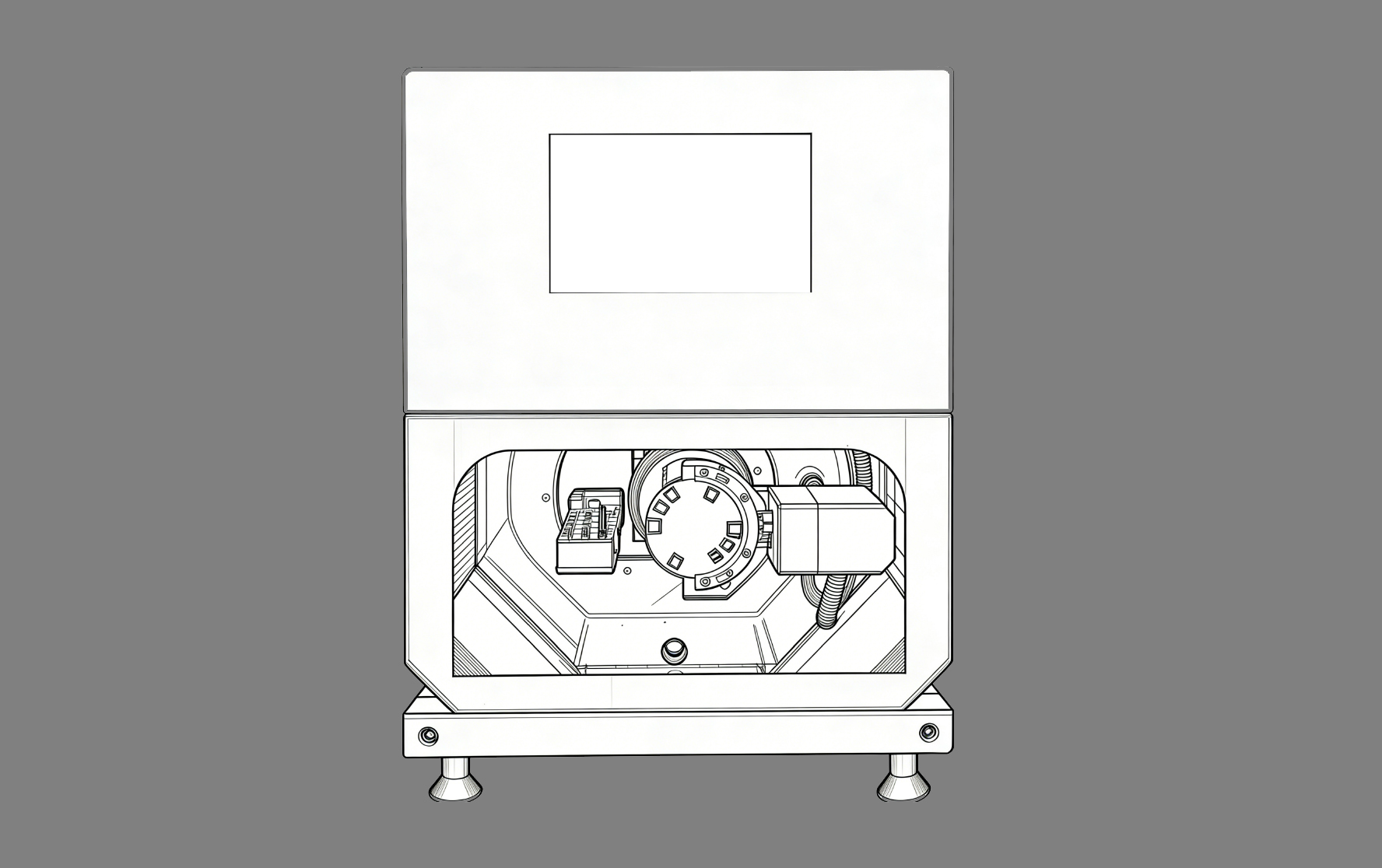

Fuselage
Document
Service
Does the carved zirconia crown/inlay frequently collapse and crack?
Replace the special diamond turning needle for zirconia to reduce the single cutting allowance and cutting speed; Clamping the blank fixture, checking whether there is any dark crack in the raw materials, calibrating the five-axis rotation center, and correcting the offset tool path to reduce the material collapse.
Supported typesetting software
Millbox Hyperdent Worknc
How long is the warranty period of the product?
Our warranty period is the standard one-year warranty.
The surface has wavy knife marks and poor finish
Replace the new finishing needle to reduce the cutting speed of finishing; Lock the screw coupling and eliminate the gap between guide rails; Optimize the smooth path of engraving software to improve the surface fineness.
Do we support training in the use of equipment?
Yes, we provide comprehensive training to ensure that you and your team feel comfortable to operate, including practical training courses in the factory, online tutorials and continuous support.
