High-precision & high-strength milling

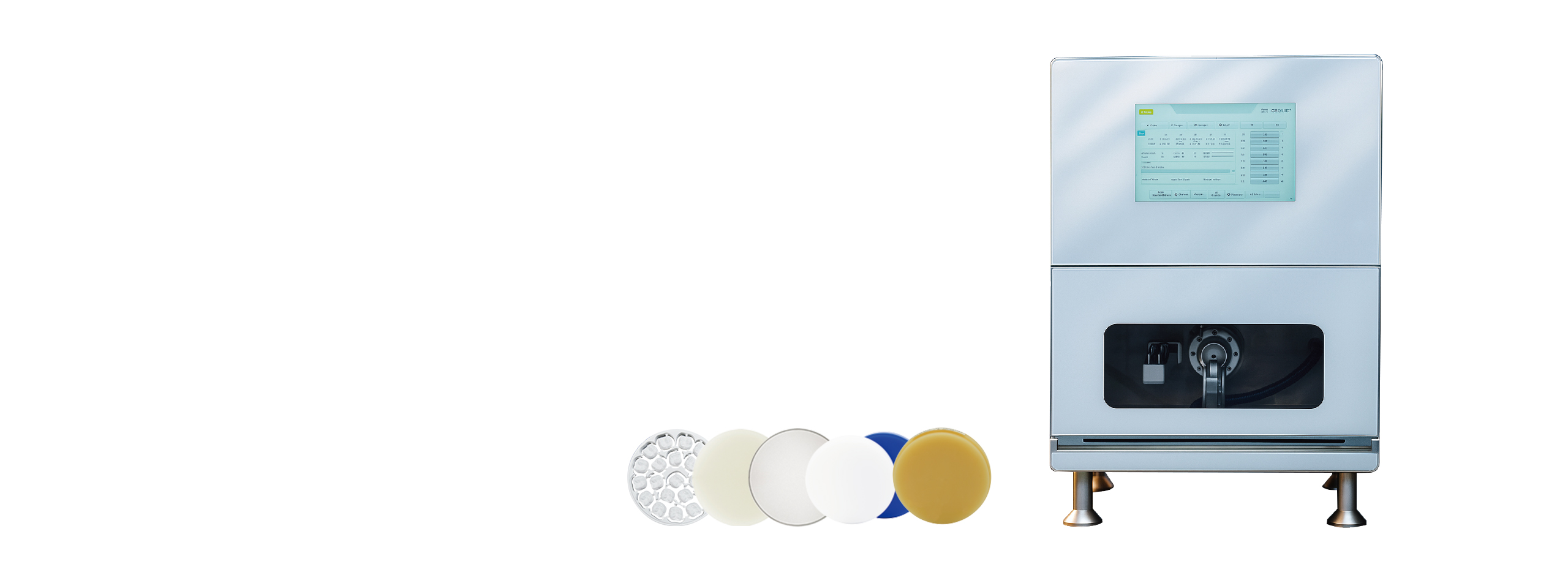

Wide Material Compatibility

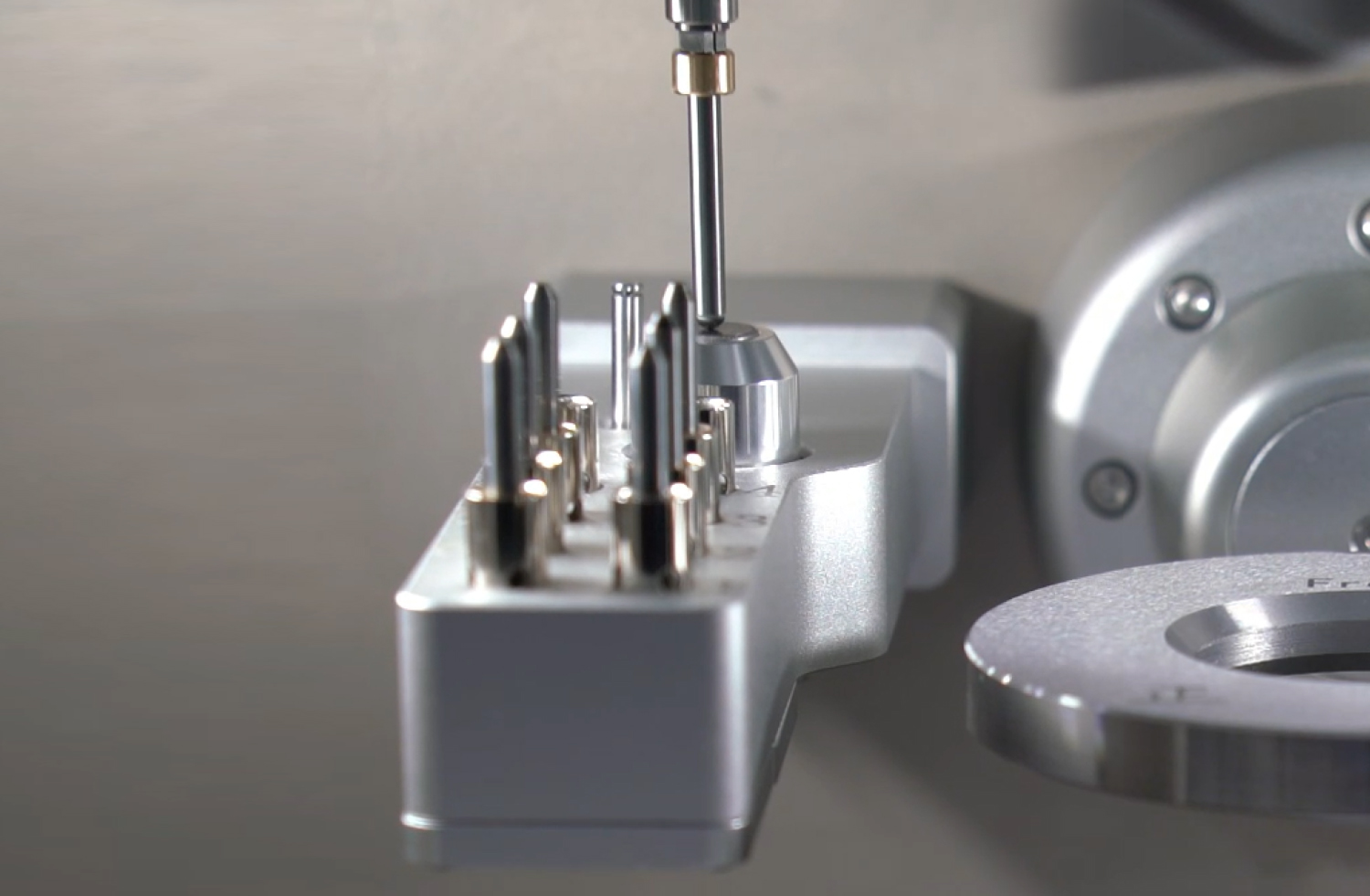

Automatic Tool Setting
and calibrates the tool length and diameter, ensuring machining
accuracy and reducing manual setup time.
90° Milling Function
Single-Piece Casting Frame
Performance Features
Parameter
Size：456*599*700MM
Weight：85KG
Processing method：Dry milling
Number of axes：Five axis
Pressure：≥ 0.65MPA
Power Supply：220V
Maximum output power：1.4KW
Repetitive positioning accuracy：± 0.005MM
Electric machinery：Servo motor
Processing angle：A ±360°，B -30° +110°

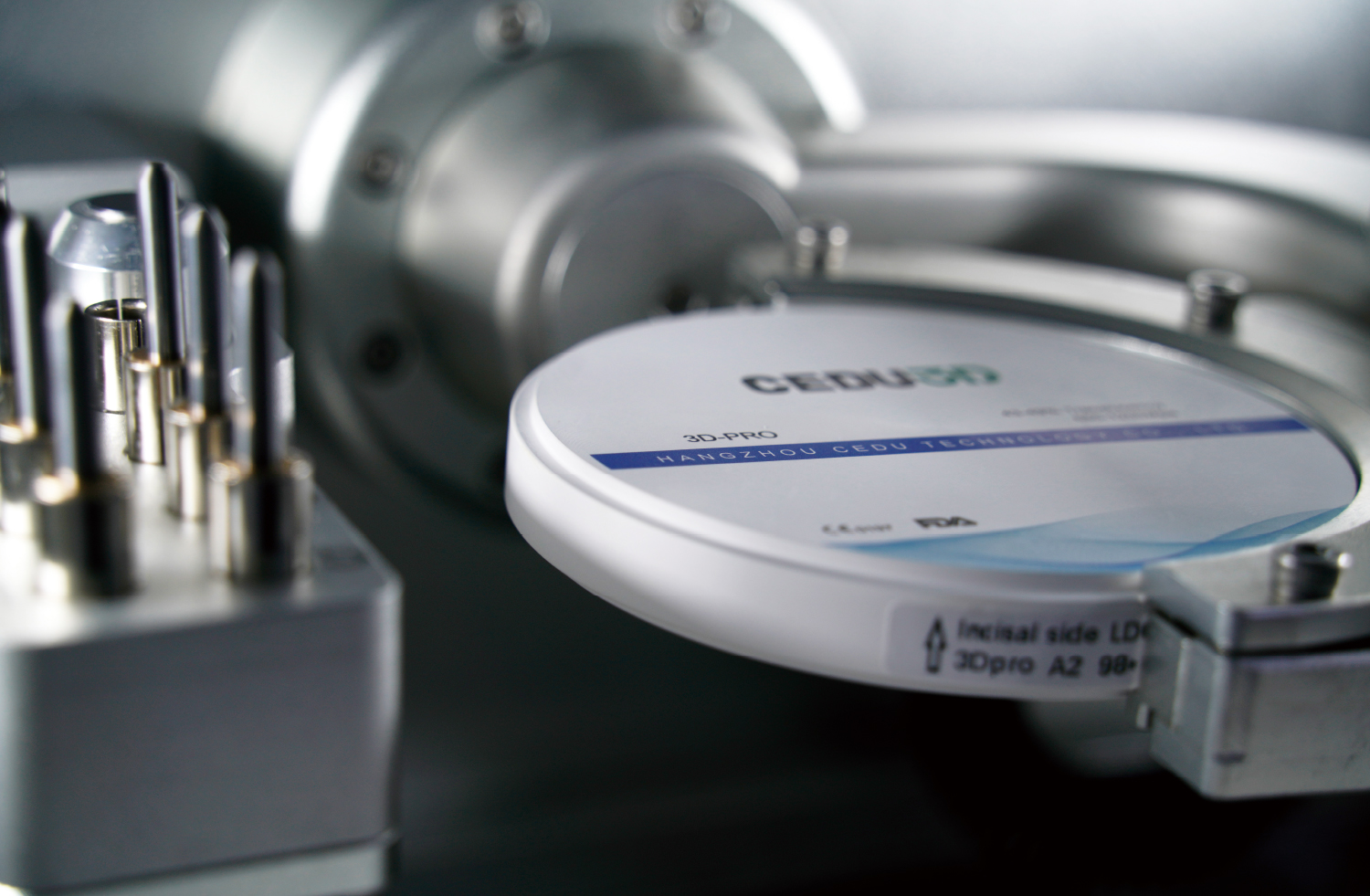

Processing materials：Zirconia, PEEK, PMMA, wax, etc

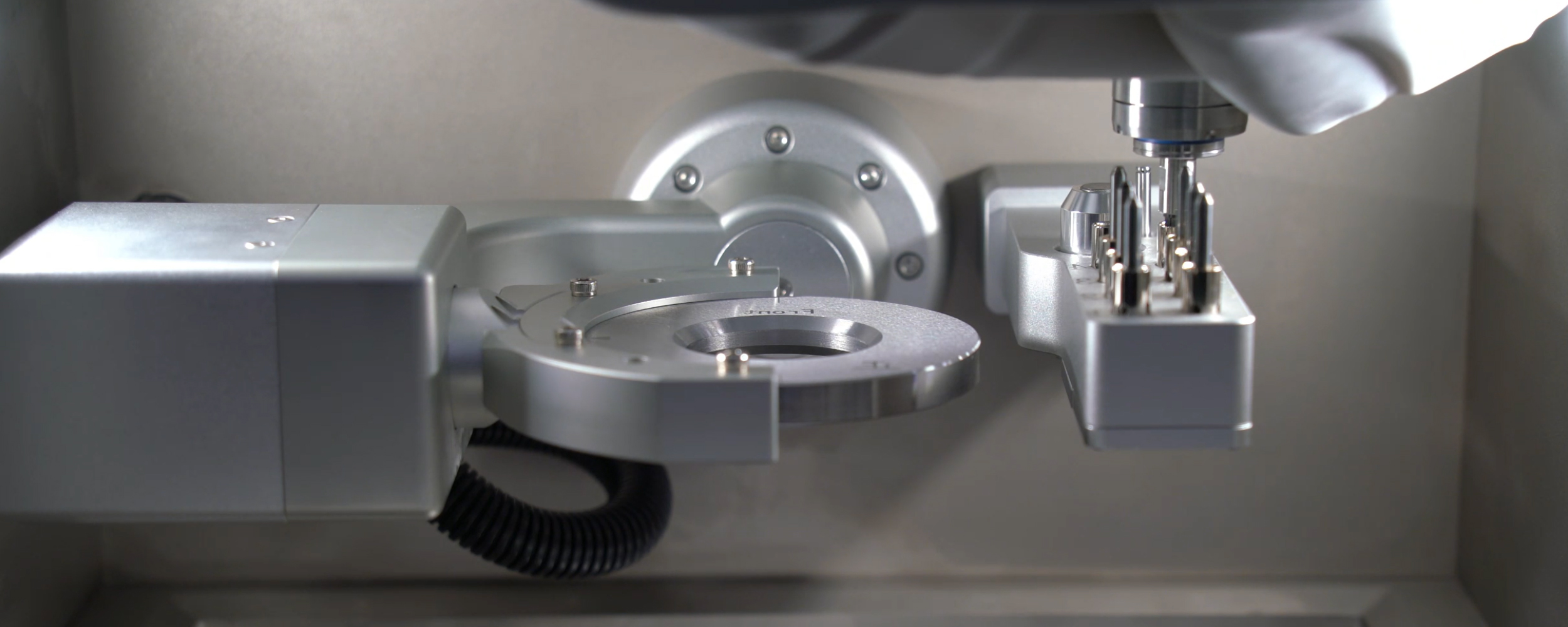

Number of cutting tools：7
Spindle：60000RPM，Natural cooling，4MM clamp head，800W
Standard milling cutter set
Accessories package
Calibration tool

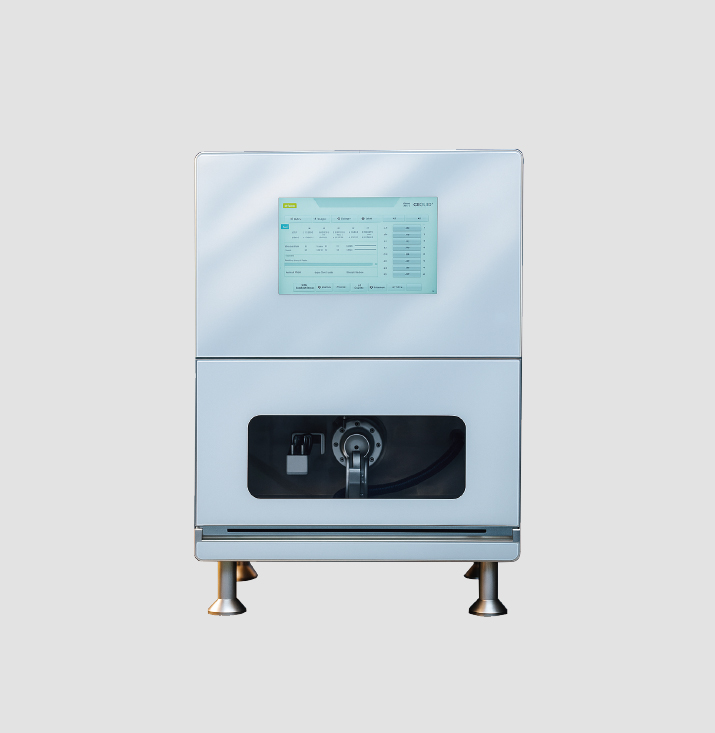

Fuselage
Document
Service
Does the carved zirconia crown/inlay frequently collapse and crack?
Replace the special diamond turning needle for zirconia to reduce the single cutting allowance and cutting speed; Clamping the blank fixture, checking whether there is any dark crack in the raw materials, calibrating the five-axis rotation center, and correcting the offset tool path to reduce the material collapse.

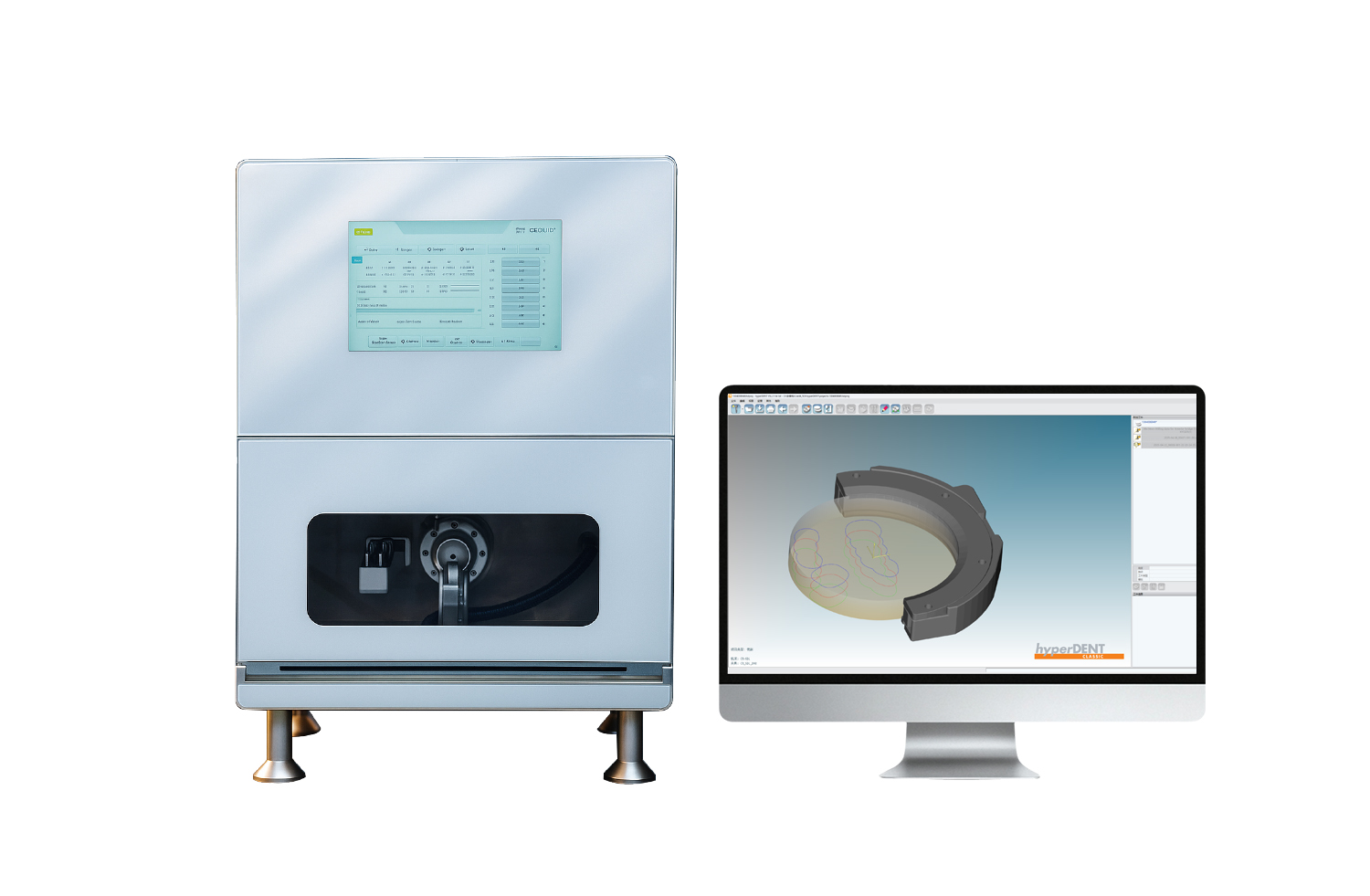

Supported typesetting software
Millbox Hyperdent Worknc
How long is the warranty period of the product?
Our warranty period is the standard one-year warranty.
The surface has wavy knife marks and poor finish
Replace the new finishing needle to reduce the cutting speed of finishing; Lock the screw coupling and eliminate the gap between guide rails; Optimize the smooth path of engraving software to improve the surface fineness.
Do we support training in the use of equipment?
Yes, we provide comprehensive training to ensure that you and your team feel comfortable to operate, including practical training courses in the factory, online tutorials and continuous support.
